Mini-Hermet - Explosion Proof Pressure/Compound Pressure Switch

Models:

Mini-Hermet

Ranges:

30 in Hg VAC to 7000 psi, 1 bar VAC to 480 bar

Certifications:

Unit: ATEX, UL/CSA, INMETRO, SILSnap Switch: ATEX, TestSafe (SAA), UL/CSA

Process pressure changes act on the diaphragm/piston assembly to actuate and de-actuate a snap-action electrical switching element at discrete process pressures. The pressure sensing element of the explosion-proof Mini-Hermet pressure/compound pressure switch is a force-balanced, piston-actuated assembly sealed by the conventional Static O-ring type that SOR pioneered.

The switching element assembly is hermetically sealed in a stainless steel capsule with the maximum explosion-proof rating.

The small, compact size of the SOR Mini-Hermet makes it extremely popular in offshore oil and gas fields because it doesn’t require much space on the skids and it is corrosion resistant.

  • Hermetically sealed snap switches
  • Ranges from 30 in Hg vacuum to 7000 psi
  • Set point adjustment without declassification of hazardous area
  • Worldwide agency approvals

Power Plant 101

Mini-Hermet Pressure Switches

Safety Integrity Level (SIL) Short Training

INMETRO Certification

Pressure Switch Features

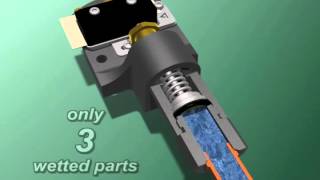

Pressure Switch Operating Principles
